MODEL:8912-GK

Features:

※ 4-ports output, level of esch port is 108dBμV.

※ Import ORTEL or PHILIPS optical module used for optical receiving, import GI and PHILIPS GaAs

※ module used for RF amplification, to guarantee good performance and high-reliablity of the whole set.

※ Working band width is 860MHz, the function of fiber optic return can be expanded, to meet the reqirements

※ of CATV system to carry out the function for service.

※ The whole set use switching power supply, less tempreture rise, adapt to a wide voltage range, high-reliablity,
220VAC and 60VAC optional.

※ Have the display circuit of optical power alarm, the green LED light on when receiving in -5~2dBm,
ease of maintenance.

Table 1

ITEM	UNIT	Performance
		8912-GK-□-□S
Bandwidth	MHz	47～860
Optical wavelength	nm	1290～1580
Optical Return Loss	dB	≥45
Input level	dBm	-5～+2
Optical Link response*	dB	±0.75
CNR*	dB	See Table 2
C/CTB*	dB	≥65
C/CSO*	dB	≥62
RF output level*	dBμV	≥108
Return Loss	dB	≥16
Power supply	V	～220V or ～60V
Operating Temp.	℃	-20～60
Power consumption	W	≤45
Connectors	Optical	FC/APC or SC/APC
	RF	5/8″or FL10
Weight	Kg	5
Dimensions	mm	360×220×150
Remark	* The 10km fiber with optical attenuator connect the 8900 cransmitter and the receiver;Input optical power of the receiver: -1dBm

Table 2

Input Optical Power(dBm)	-4	-3	-2	-1	0	+1
C/N(dB)	49	50	51	52	53	54

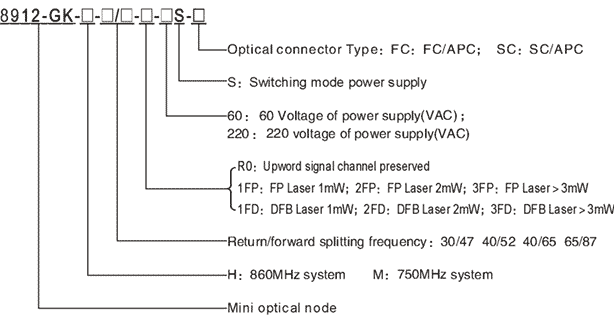

8912-GK OPTICAL NODE NAMING :
